Posted in: Specs | by Brian Taylor | 2022 Sept 15

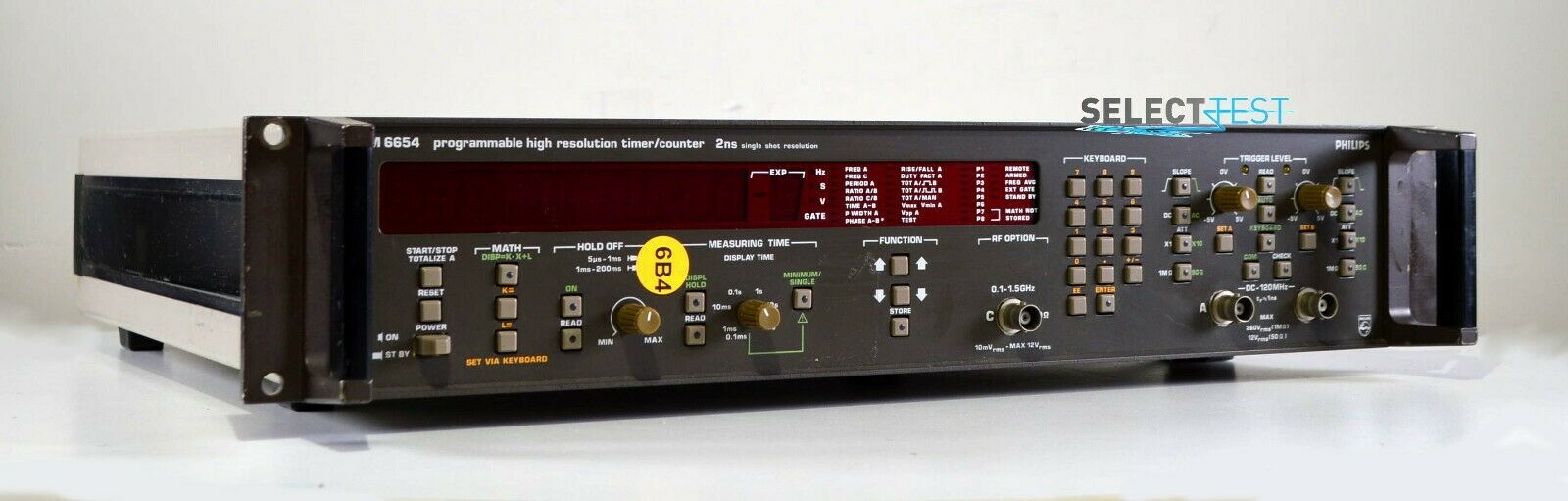

PHILIPS PM6654 -- More Picts - Open image

The Philips / Fluke PM6652 / PM6652C / PM6654 / PM6654C Programmable High Resolution Timer/Counter units are fully programmable and satisfy most frequency and time measurement requirements. The four instruments look the same; the difference being found in resolution, accuracy, and measuring speed.

Origin:	Montreal, Quebec, Canada
Delivery:	09-19, 09-26
datepaid:	2022-09-xx
Received:	2022-09-xx
Quantity:	1pcs
Price:	599.00
Shipping:	52.63
Total:	651.63
PriceEach:	651.63

The PM6652 and PM6652C have a 10 MHz (100 ns) clock frequency, whereas the extra high resolution PM6654 and PM6654C features a 500 MHz (2 ns) real time clock. Thanks in part to their short measuring cycle times, the PM6654 abd PM6654C are particularly well suited to high speed automatic test systems. The ”C” version, introduced in 1986, have additional features beyond the original units. Frequency and period measurements are made very rapidly. The PM6654 needs only one second for a 9-digit resolution while the PM6652, in the same time, gives 7 digits. Both models perform measurements such as burst frequency, multiple burst frequency average, and externally gated frequency measurements.

Description:
• Frequency range: .01 Hz to 120 MHz (0.1 Hz to 1.5 GHz C-CHANNEL)
• 10-Digit Display
• High Measuring Power
• Time Interval Measuring Accuracy
• Fully programmable
• Up to 420 measurements/s
• 500 MHz time base for single pulse resolution of 2 ns
• Digital readout of trigger levels
• Mathematical functions
• Trigger facilities including arming, hold-off, external gating and auto trigger level
• Time interval resolution down to 0,5 ps averaged and 2 ns single shot
• High accuracy frequency and period measurements of 9 digits in 1 second

Installed Options:
• PM9696: IEEE 488/IEC625 Interface Card
• PM9611: Auxiliary Inputs K, L, and M
• Input C: Optional 0.1 - 1.5 GHz RF Signal Input with Automatic Attenuator

Package Content: DB15 Female connectors

Quantity: 1pcs

OrderFrom: ebay

Other Images (1) eBay Item: 202967004710

https://www.ebay.com/usr/gutlizqun
