robotic.icu: RF-Nano for Arduino Nano V3.0 Improved Version Type-C Micro USB ATMEGA328P Nano V3.0 CH340 Integrate NRF24l01 2.4G Wireless Posted in: Specs | by Brian Taylor | 2024 Jan 15
Features:
1.The improved version adopts the ATMGEA328P-AU chip packaged in QFP32, which can ensure product functionality while reducing development costs;
Origin:
China
Delivery:
11-03, 09-26
datepaid:
2024-01-xx
Received:
2024-01-XX
Quantity:
2pcs
Price:
4.52
Shipping:
3.43
Total:
12.47
PriceEach:
6.235
2.The NRF24L01+chip is integrated on the board, making it have unlimited transmission and reception functions;
3.The Nano development board and an NRF24LO1 module are combined to make it more convenient to use and have a smaller size;

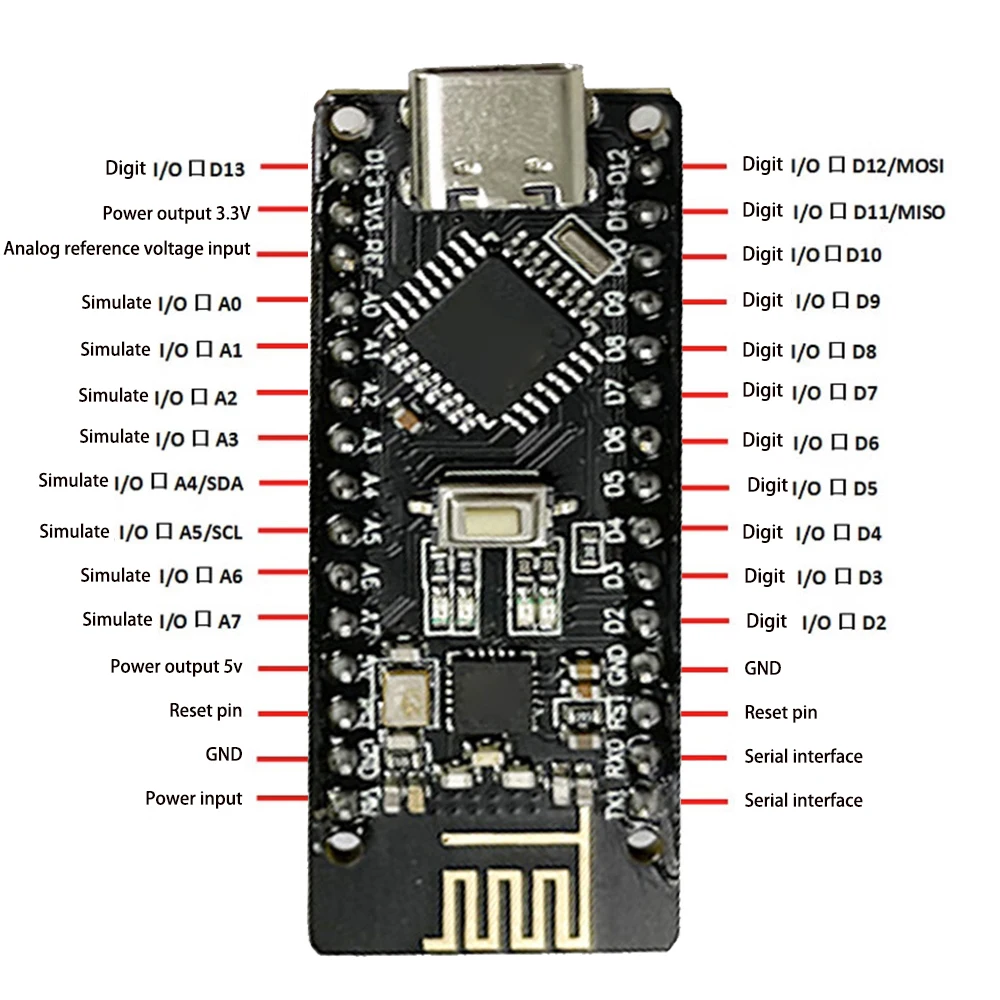

4.The pins are exactly the same as those of common Nano boards, making it easy to transplant;
5.There are two interface options, USB-Micro and Type-C interfaces, which can be connected to most products in the market to achieve interface power supply.
Product Introduction:
The board of RF-NANO integrates the NRF24L01+chip, making it have unlimited transceiver function, which is equivalent to combining a Nano development board and an NRF24LO1 module, making it more convenient to use and smaller in size. The pins are exactly the same as those of common Nano boards, making it easy to transplant.
Parameters: ==Introduction to processors:
The microprocessor of the module is ATmega328 (Nano3.0), with USB-Micro/Type-C interface, 14 digital input/output ports (6 of which can be used as PWM output), 8 analog inputs, a 16MHz crystal oscillator, a USB port, an ICSP header, and a reset button.
Processor: ATmega328
Working voltage: 5V Input voltage (recommended): 7-12V Input voltage (range): 6-20V
Digital lO pin: 14 (where 6 channels are used as PWM outputs) (D0~D13)
Analog input pins: 6 (A0~A5)
IO pin DC current: 40mA
Flash Memory: 32KB (2KB for bootloader)
SRAM: 2KB
EEPROM: 1KB (ATmega328)
USB to serial chip: CH340
Working clock: 16 MHZ
Power supply:
Power supply method: USB interface power supply and external vin connected to 7-12v external DC power supply
Memory:
ATmega328 includes on chip 32KB Flash, of which 2KB is used for Bootloader. There are also 2KB SRAM and 1KB EEPROM.
Input output:
14 digital input/output ports: The working voltage is 5V, and each channel can output and access a maximum current of 40mA. Each circuit is equipped with an internal pull-up resistor of 20-50K ohms (default not connected). In addition, some pins have specific functions.
Serial port signals Rx (number 0) and TX (number 1): provide a serial port receiving signal with TTL voltage level, connected to the corresponding pins of FT232RI.
External interrupts (No. 2 and No. 3): Trigger interrupt pins, which can be set as rising edge, falling edge, or triggered simultaneously.
Pulse width modulation PWM (3, 5, 6, 9, 10, 11): Provides 6 8-bit PWM outputs.
SPI (10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK)): SPI communication interface.
LED (No. 13): A reserved interface specifically designed for testing LEDs. When the output is high, the LED lights up, and when the output is low, the LED turns off.
6-channel analog inputs A0 to A5: Each channel has a resolution of 10 bits (i.e. 1024 different input values), and the default input signal range is 0 to 5V. The input upper limit can be adjusted through AREF. In addition, some pins have specific functions.
TWI interface (SDA A4 and SCL A5): supports communication interfaces (compatible with I2C bus).
AREF: Reference voltage for analog input signals.
Reset: When the signal is low, reset the microcontroller chip.
Communication interface:
Serial port: The built-in UART of ATmega328 can communicate with external devices through digital ports 0 (RX) and 1 (TX).
