Posted in: Specs | by Brian Taylor | 2021 Apr 24

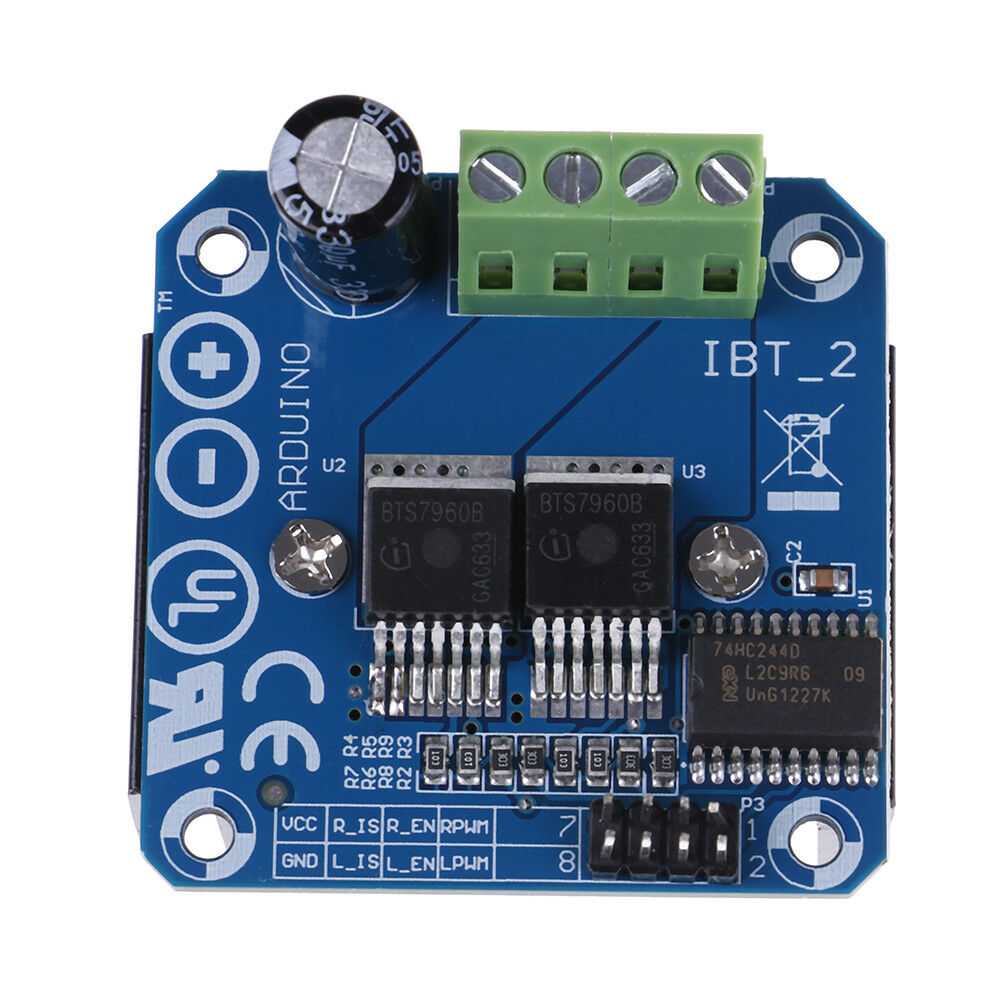

BTS7960B -- More Picts - Open image

Specification:
Double BTS7960 large current (43 A) H bridge driver;
5V isolate with MCU, and effectively protect MCU;
5V power indicator on board;

Origin:	Aliexpress
Delivery:	09-15, 09-18
datepaid:	2024-09-07
Received:	2024-09-13
Quantity:	1pcs
Price:	3.49
Shipping:	0.00
Total:	3.49
PriceEach:	3.49

Voltage indication of motor driver output end;
Can solder heat sink;
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
Isolation chip 5 V power supply (can share with MCU 5 V);
Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
Two heat flow passing through an error signal output;
Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
The supply voltage 5.5V to 27V

Package Included:
1 x Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM For Arduino smart Car

Amazon

Quantity: 1pcs

OrderFrom: Aliexpress

Other Images (1) Aliexpress Order page
