robotic.icu: 20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply
Posted in: Specs | by Brian Taylor | 2024 Sept 07

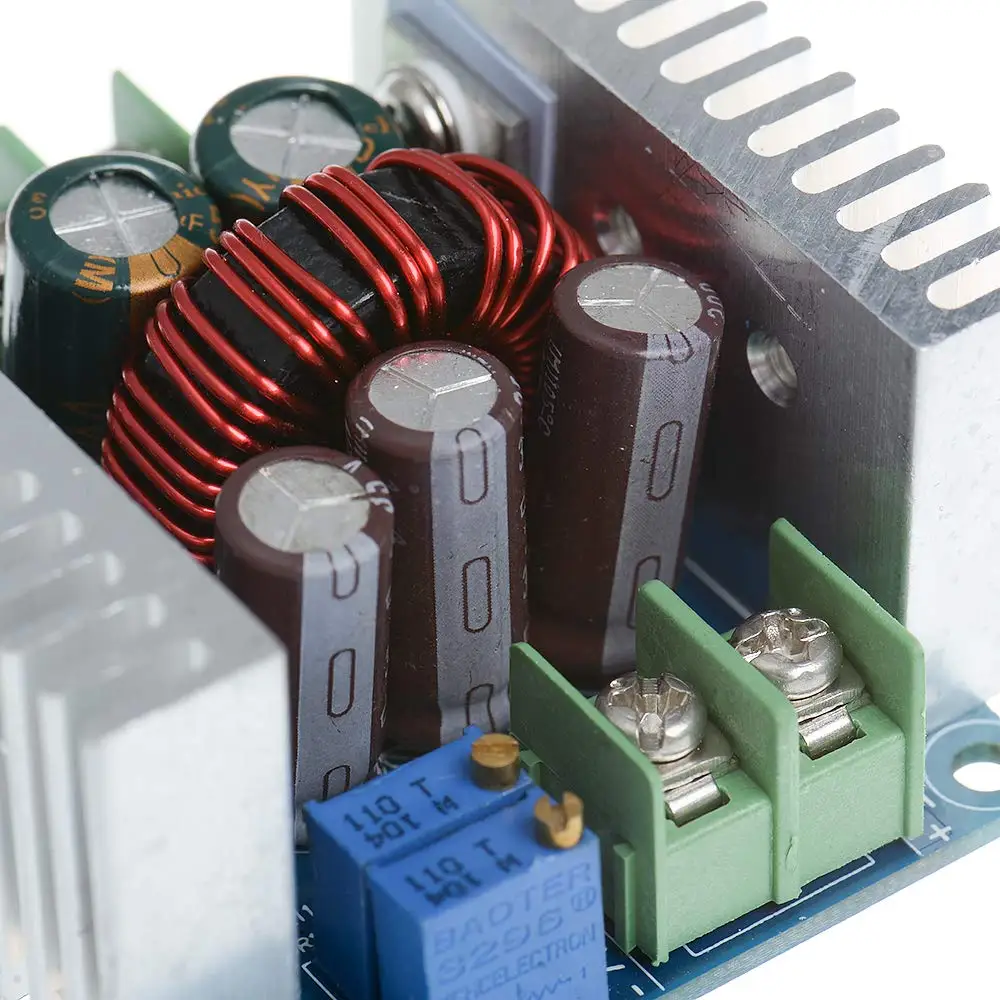

Buck20A300W1.2v36v -- More Picts - Open image
Description:

  • High Power Output: This CC CV Step Down Module provides a high power output of 300W, ensuring efficient operation and performance.
    Origin: Aliexpress
    Delivery: 09-15, 09-18
    datepaid: 2024-09-07
    Received: 2024-09-13
    Quantity: 2pcs
    Price: 3.59
    Shipping: 0.00
    Total: 7.18
    PriceEach: 3.59

  • Adjustable Voltage: The module offers adjustable DC 6-40V to 1.2-36V voltage regulation, providing flexibility in various power supply needs.
  • Constant Current Supply: Designed to maintain a constant current supply, it ensures stable and reliable power delivery for your devices.
  • Versatile Application: Ideal for DC motors, it can be used in a variety of applications, offering versatility and flexibility in usage.
  • Compact Design: Its compact design makes it easy to install and integrate into your existing systems, saving space while delivering top-notch performance.
  • Durable Construction: Originating from Mainland China, this module boasts of durable construction, promising long-lasting reliability and service.

    ProdInfo:
    1pcs 20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply Module

    Features:

  • The buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output currentSpecifications.
  • With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).
  • Short Circuit Protection: Self-recovery(cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage,CC output constant current.
  • Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install.
  • Application: DIY stabilised voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, etc.

    Specifications:

  • Input Voltage: 6V to 40V DC(10V to 40V is suggested)
  • Output Voltage: 1.2V to 36V DC
  • Output Current: 20A(max.), 15A(suggested)
  • Efficiency: 95%(24V to 12V, 20A)
  • Ripple output: ≤ 50mV
  • Wiring Method: Terminal
  • Short Circuit Protection: Self-recovery(cannot short circuit for long time)
  • Size: 60x53x27mm/2.36x2.08x1.06
  • VO+: Output positive
  • VO-: Output negative
  • +IN: Input positive
  • -IN: Input negative
  • CV: Output voltage adjustment
  • CC: Output current adjustment
  • EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
    Specification:


    Package Included:
    1 x Buck20A300W1



    Quantity: 2pcs

    OrderFrom: Aliexpress

    Other Images (1) Aliexpress Order page
