MPU-6050

Description:
The MPU-6050 is a serious little piece of motion processing tech! By combining a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis Motion Fusion algorithms,

Origin:	Hong Kong, China
Delivery:	10-04, 10-04
datepaid:	2021-08-24
Received:	2021-09-07
Quantity:	5pcs
Price:	0.816
Shipping:	0.00
Total:	4.08
PriceEach:	0.816

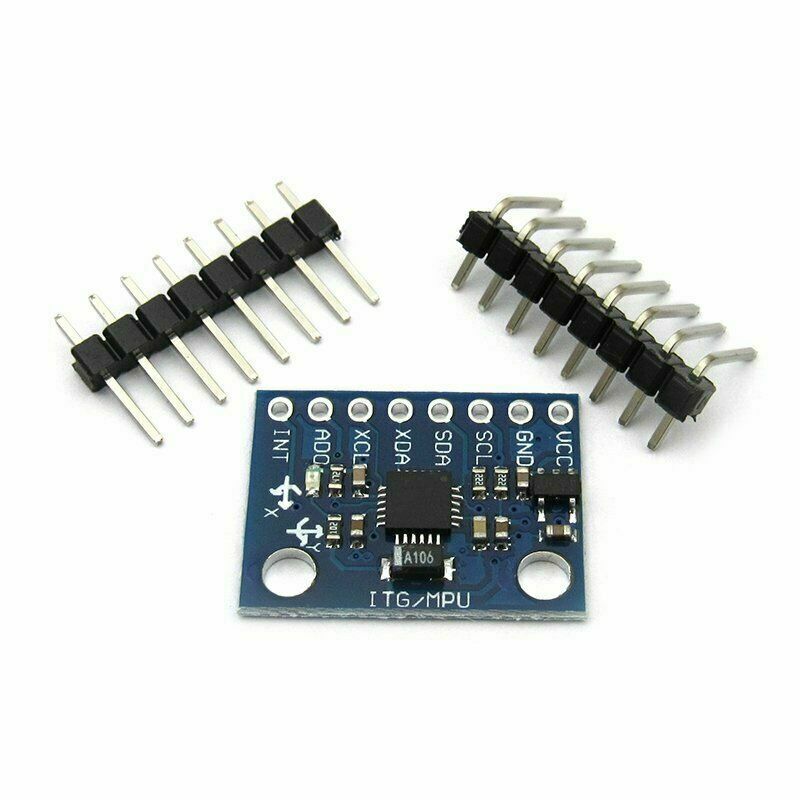

the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts. This board includes a MPU-6050 6-Axis Motion Processing Unit, a 2.5V voltage regulator, and the logic level converter circuit to makes it work under the power of 3V-5V. Based on its I2C communication protocol, you can use very few wires to connect it with a 3V-5V MCU directly. The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefore it captures the x, y, and z channel at the same time.

Product Feature:
I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format
Input Voltage: 2.3 - 3.4V
Selectable Solder Jumpers on CLK, FSYNC and AD0
Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
Chip built-in 16 bit AD converter, 16 bits data output
Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
Embedded algorithms for run-time bias and compass calibration. No user intervention required
Digital-output temperature sensor

Chip	MPU-6050
Power supply	3V-5V power(internal low dropout regulator)
Gyroscope range	+ 250 500 1000 2000 ° / s
Acceleration range	± 2 ± 4 ± 8 ± 16 g
Communication Mode	standard i2c
Pin pitch	2.54 mm
Size	20.3mm x 15.6mm
Application	-Motion sensing game - Augmented Reality - Electronic Image Stabilization (EIS: Electronic Image Stabilization) - Optical image stabilization (OIS: Optical Image Stabilization) - Pedestrian Navigator - Zero-touch gesture user interface - The postures quick way
i2c ADDR	yxxxxy
