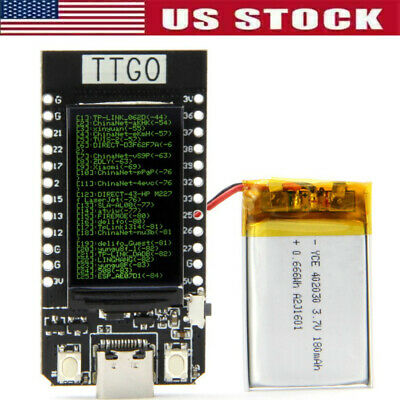

TTGO

===== Hardware Specifications =====
Chipset:
ESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
FLASH: QSPI flash 4MB
SRAM: 520 kB SRAM
Button: Reset
USB to TTL: CP2104
Interface:
UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO,ADC, capacitor touch sensor, DACLNA pre-amplifier
Display: IPS ST7789V 1.14 Inch
Working voltage: 2.7V-4.2V
Working current: About 60MA
Sleep current: About 120uA
Working temperature range: -40C~+85°C
Size & Weight: 51.52 x 25.04 x 8.54mm(7.81g)
Power Supply: USB 5V/1A
Charging current: 500mA

Origin:	Alloway, New Jersey
Delivery:	11-10, 11-12
datepaid:	2020-11-04
Received:	2020-11-07
Quantity:	1pcs
Price:	13.00
Shipping:	0.00
Total:	13

Battery: 3.7V lithium battery
JST Connector: 2Pin 1.25mm
USB: Type-C
Wi-Fi
Description
Standard
FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC

Protocol
802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4us Protection interval
Frequency range: 2.4GH2~2.5GHz(2400M-2483.5M)
Transmit Power: 22dBm
Communication distance: 300m
Bluetooth Protocol: Support bluetooth V4.2BR/EDR and BLE standard
Radio frequency:
With -97dBm sensitivity NZIF receiver Class-1, Cl ass-2 & Class-3 emitter AFH
Audio frequency: CVSD&SBC audio frequency
== Software Description ==
Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type: AES/RSA/ECC/SHA

Firmware upgrade:
UART download/OTA (Through network/host to download and write firmware)
Software Development:
Support cloud server development/SDK for user firmware development
Networking protocol:
IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration:
AT + Instruction set, cloud server, android/iOSapp
OS: FreeRTOS
Package includes:
1 x Development board with pins
1 x Battery cable
============================
Item:TT-GO T-Display ESP32 WiFi for Bluetooth Dual Module
Color:Black
Display:1.14 inch colorful LCD display
Application:For Arduino, for IOT
Voltage:3.7V

Features:
1. Easy to Use: 1.14 inch colorful LCD display equipped to meet your requirements; Simple installation and operation ensured.
2. Low Power Consumption: Efficient and energy-saving design; Battery powered charging circuit added.
3. Practical, Convenient: Designed with customized button to bring you more convenience in actual use.
4. Wide Application: It can be used for Arduino and for IOT; Sustainable for long time use.
5. Long Service Life: To reach a time-proof long-lasting lifespan, we used top-rated rugged and durable raw material for this board.

Package Included: 1 TFT_eSPI TTGO-T-Display eBay Item: 184349786681
