Posted in: Specs | by Brian Taylor | 2022 Dec 19


LVDS Driver -- More Picts - Open image

For B101EW05 V3 Panel 10.1'' Controller board 1280X800 LCD monitor LED display kit 40pin Screen VGA DIY HDMI M.NT68676 DVI

Origin:	Ordered, aliExpress
Delivery:	01-15, 01-15
datepaid:	2022-12-20
Received:	2023-01-03
Quantity:	1pcs
Price:	19.67
Shipping:	0.00
Total:	19.67
PriceEach:	19.67

Items send with tracking number
work power is 12V-3A or 12V-4A DC port is 2.5MM and 5.5MM inner + outside -

Open image

Item Discription

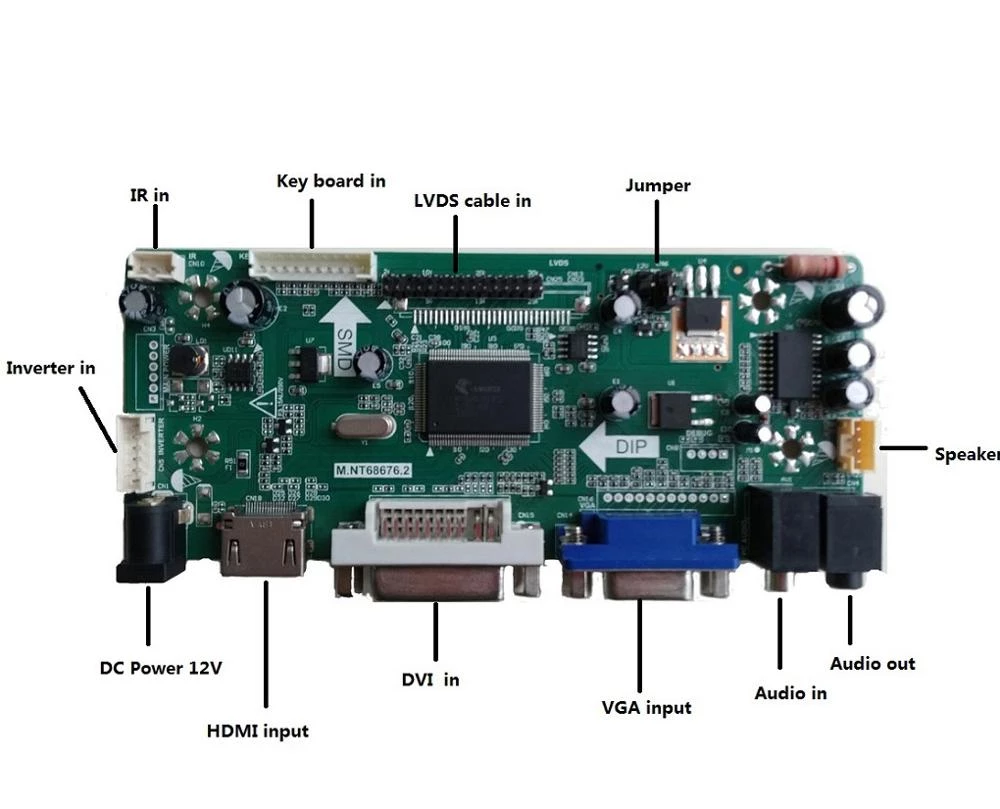

M.NT68676.2 LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 3A. DC port 2.5MM and 5.5MM (inter+/outside-)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm
Compatible Work With LCD Model:
B101EW05 V3
The LCD model number is on the back of your LCD LED ,when you make the order ,please mark your Full LCD model on or leave message to tell me with thanks

Packing list :
1X HDMI VGA DVI LCD Controller Board M.NT68676
1X Right LVDS Cable
1X Keyboard With Cable

Package Content:
Driver board
IR Reciever
IR Remote

Quantity: 1pcs

OrderFrom: Aliexpress

Feedback:
Seller went above and beyond all expectations and provided excellent service. I bought this item for the HTC Jetstream 10 inch screen, The video card works great, but the screen looks washed out. I suspect the screen needs some kind of polarized optical filter. Thank you very much for your excellent product... 02 Feb 2023 00:02 Other Images (1) Aliexpress Order page
