Posted in: Specs | by Brian Taylor | 2021 May 29


DD1912PA 2in1 Boost-Buck -- More Picts - Open image

Product Name: 2 in 1 8W Boost-Buck Dual +- Voltage Board 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V for ADC DAC LCD op-amp Speaker
Packing list:
1 PCS DC DC Boost-Buck Converter +/- voltage Dual voltage Module

Origin:	ShenZhen, China
Delivery:	09-19, 09-26
datepaid:	2023-05-19
Received:	2021-05-xx
Quantity:	1pcs
Price:	4.50
Shipping:	3.50
Total:	8
PriceEach:	8

Description:

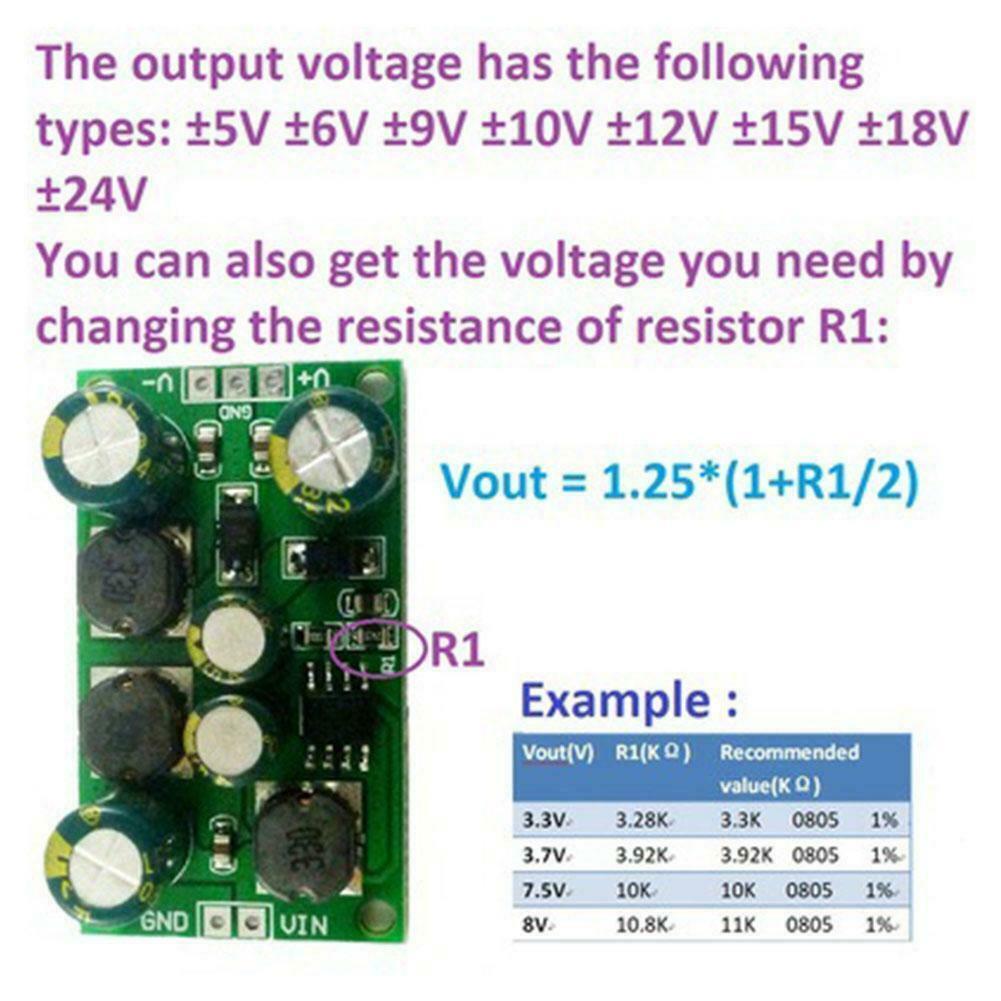

Input voltage 3-24V,output optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%,Negative voltage ±5%

8W DC-DC Boost-Buck Converter working frequency 400KHZ.
Operating ambient temperature : -40+85 Degrees Celsius

Open image

Input voltage:
DC +-3.5~+-20V,
Output : DC ±2.5V ±3.3V ±5V ±7.5V ±10V ±12V
Maximum output current : 14MA <======================

Size : 42 x 24 x 15mm
Weight : 10g

High efficiency up to 90%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function

Note:
1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA
2 V- cannot be used alone, or no voltage output.But you can just use V+

Package Content:
1 x DD1912PA

Quantity: 1pcs

OrderFrom: ebay
