Posted in: Specs | by Brian Taylor | 2023 Jun 08

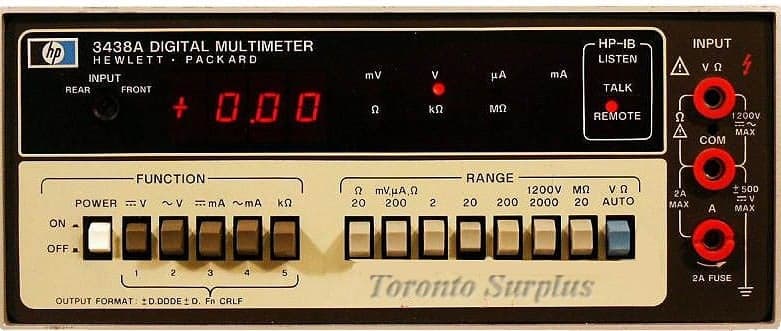

HP3438A DVM -- More Picts - Open image

03438-90002 (May 1969) The 3438A Digital Multimeter is a discontinued product. The -hp- Model 3438A is an HP-IB compatible, 3.5 digit, five function, autoranging multimeter. The functions are AC and DC Voltage, AC and DC Current and Ohms. All five functions have manually selectable ranges.

Origin:	USA
Delivery:	08-16, 08-16
datepaid:	2021-05-xx
Received:	2020-08-xx
Quantity:	1pcs
Price:	400.xx
Shipping:	0.00
Total:	400
PriceEach:	400

AC and D C Voltage and Ohms functions may also be automatically ranged by depressing the AUTO pushbutton.

The 3438A enables the user to set up a low cost data gathering system utilizing the HP-IB. Voltage (ac or dc), Current (ac or dc) and resistance information can be transferred on the HP-IB to Printers, Calculators, and Computers for data storage or hard copy printouts.

Throughout the remainder of this manual, the -hp- Model 3438A Multimeter will be referred to as Multimeter.

Open image

Commands:

Command	Function (1975)
SH1	Source Handshake
AH1	Acceptor Handshake
T7	Talker (basic talker, talk only mode unaddress-to-talk if addressed-to-listen
L4	Listener (basic listener, unaddress-to-listen if addressed-to-talk)
E1	Open collector Bus driver
DT1	Device trigger
RL2	Remote/Local

Description:
● GPIB/IEEE-488 option
● PM9696 IEEE 488/IEC 625 INTERFACE

Package Content:
1 x HP3438A DVM

Quantity: 1pcs

OrderFrom: ebay

I think one of your diagrams was wrong..
Correct diagram is:
MOSI --> MISO
MISO <-- MOSI

I would like to see the best method to connect an esp to the HPIB interface for full 2 way communication. I am thinking either i2c or RX/TX... Is there a chip that speaks HPIB natively, or should I just program it into the code?

HPIB has 8 data pins and 8 pins that work similar to: DTR, CTS, etc..

I want to take full advantage of those pins and have it know what to do.

I have a HP3438A DVM that I hope to make post data to a MySQL database. and let me change settings remotely.. Other Images (1) eBay Item: 274417844176
