NCH6100HV

NCH6100HV high voltage power supply module

Origin:	Greater China
Delivery:	2022-06-10,06-10
datepaid:	2022-05-10
Received:	2022-05-25
Quantity:	1pcs
Price:	13.99
Shipping:	0.00
Total:	13.99
PriceEach:	13.99

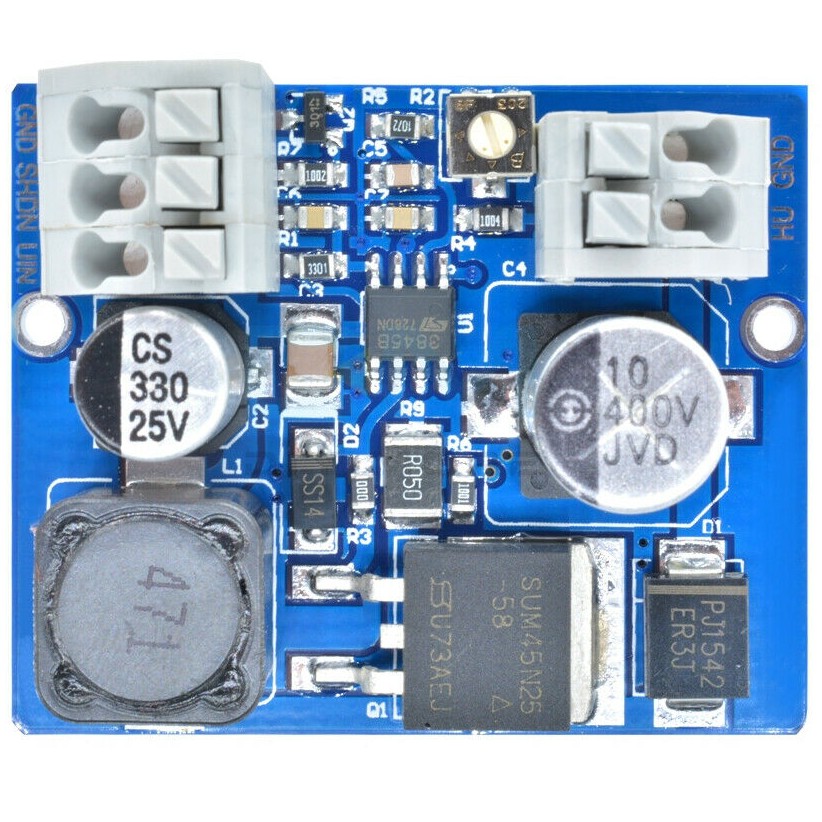

is miniature step-up DC-DC converter with high efficiency and low heat operating from 12v to 24v DC input, with an output of 85~235V DC set by a precise potentiometer. Designed for Nixie tube, VFD tube, Magic eye etc. shutdown mode are controlled via SHDN logic input. PCB terminals and pin headers are optional.

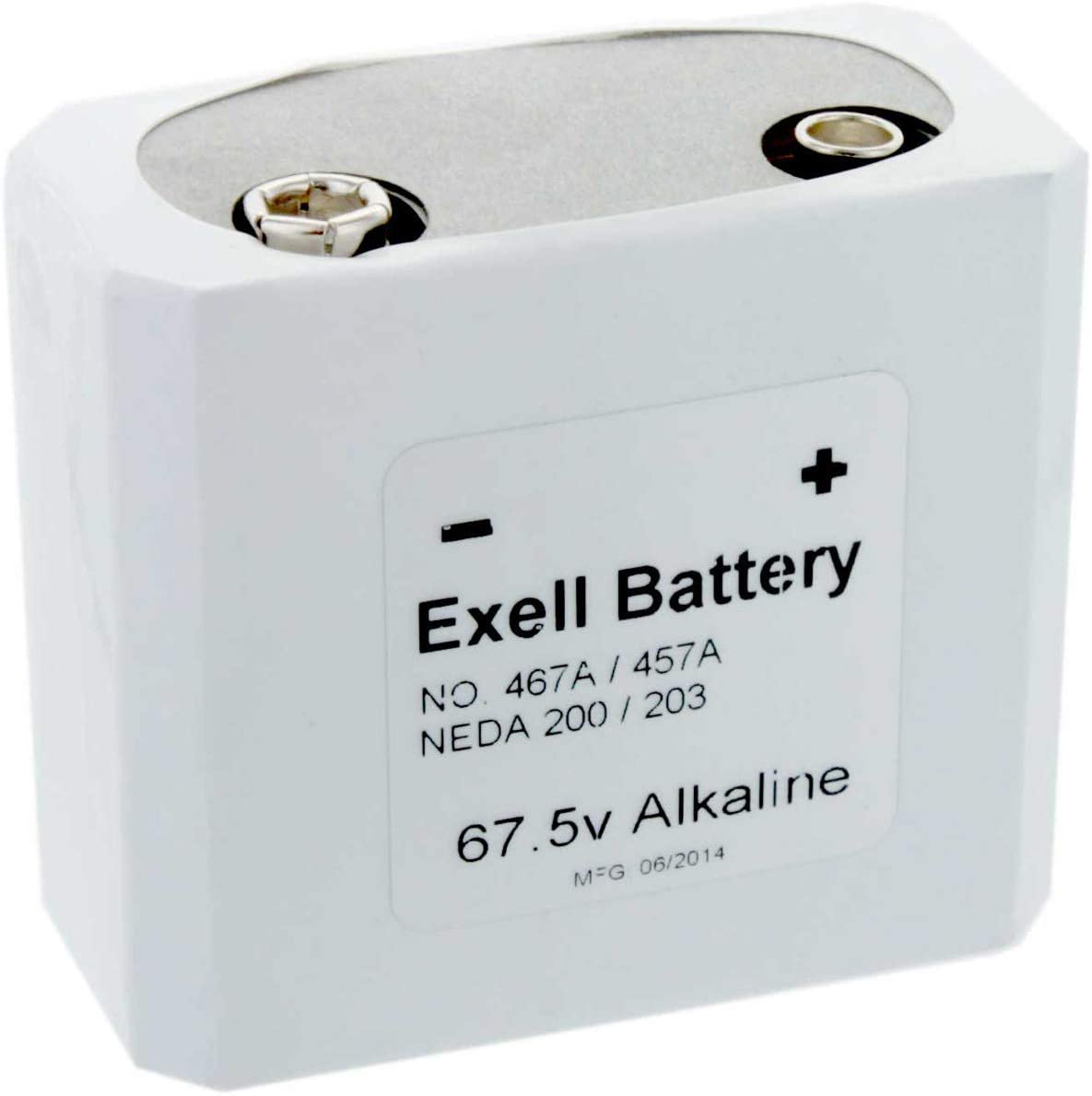

This inverter replaces 2 batteries in the lower picture, which costs $64/ea on amazon..

Specs
Input voltage: DC 12v-24V
Output voltage: DC 85-235V
Dimensions: 45mm x 37mm x 15mm

Technical Details
Uranium Ore-locator: Model RM2N(Tubes: 1U5),
Set V-out to: 135v(For RM2N)

Quantity: 1 pcs x 1 eBay Item: 363456110141
