Posted in: Specs | by Brian Taylor | 2024 Sept 07


Buck20A300W1.2v36v -- More Picts - Open image

Description:

High Power Output: This CC CV Step Down Module provides a high power output of 300W, ensuring efficient operation and performance.

Origin:	Aliexpress
Delivery:	09-15, 09-18
datepaid:	2024-09-07
Received:	2024-09-13
Quantity:	2pcs
Price:	3.59
Shipping:	0.00
Total:	7.18
PriceEach:	3.59

Adjustable Voltage: The module offers adjustable DC 6-40V to 1.2-36V voltage regulation, providing flexibility in various power supply needs.

Constant Current Supply: Designed to maintain a constant current supply, it ensures stable and reliable power delivery for your devices.

Versatile Application: Ideal for DC motors, it can be used in a variety of applications, offering versatility and flexibility in usage.

Compact Design: Its compact design makes it easy to install and integrate into your existing systems, saving space while delivering top-notch performance.

Durable Construction: Originating from Mainland China, this module boasts of durable construction, promising long-lasting reliability and service.

ProdInfo:
1pcs 20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply Module

Features:

The buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output currentSpecifications.

With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).

Short Circuit Protection: Self-recovery(cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage,CC output constant current.

Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install.

Application: DIY stabilised voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, etc.

Specifications:

Input Voltage: 6V to 40V DC(10V to 40V is suggested)

Output Voltage: 1.2V to 36V DC

Output Current: 20A(max.), 15A(suggested)

Efficiency: 95%(24V to 12V, 20A)

Ripple output: ≤ 50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery(cannot short circuit for long time)

Size: 60x53x27mm/2.36x2.08x1.06

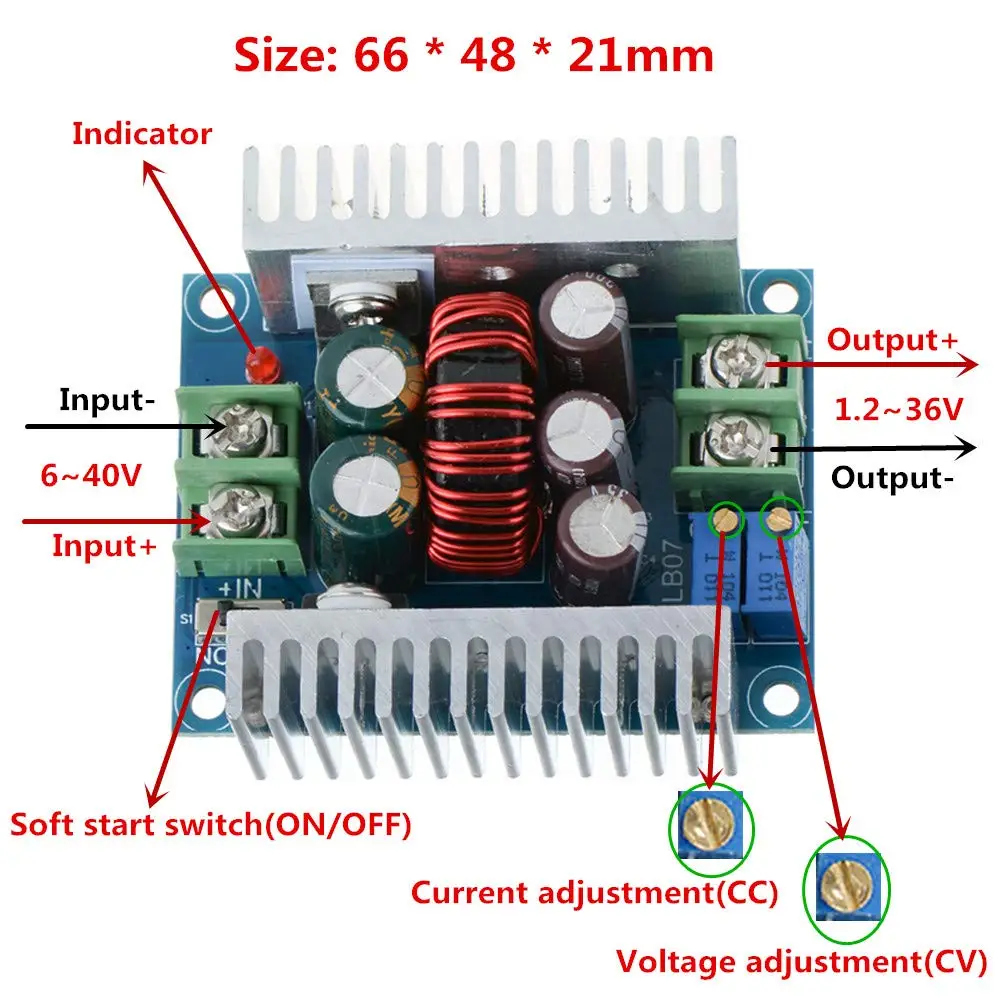

VO+: Output positive

VO-: Output negative

+IN: Input positive

-IN: Input negative

CV: Output voltage adjustment

CC: Output current adjustment

EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

Specification:

Package Included:
1 x Buck20A300W1

Quantity: 2pcs
