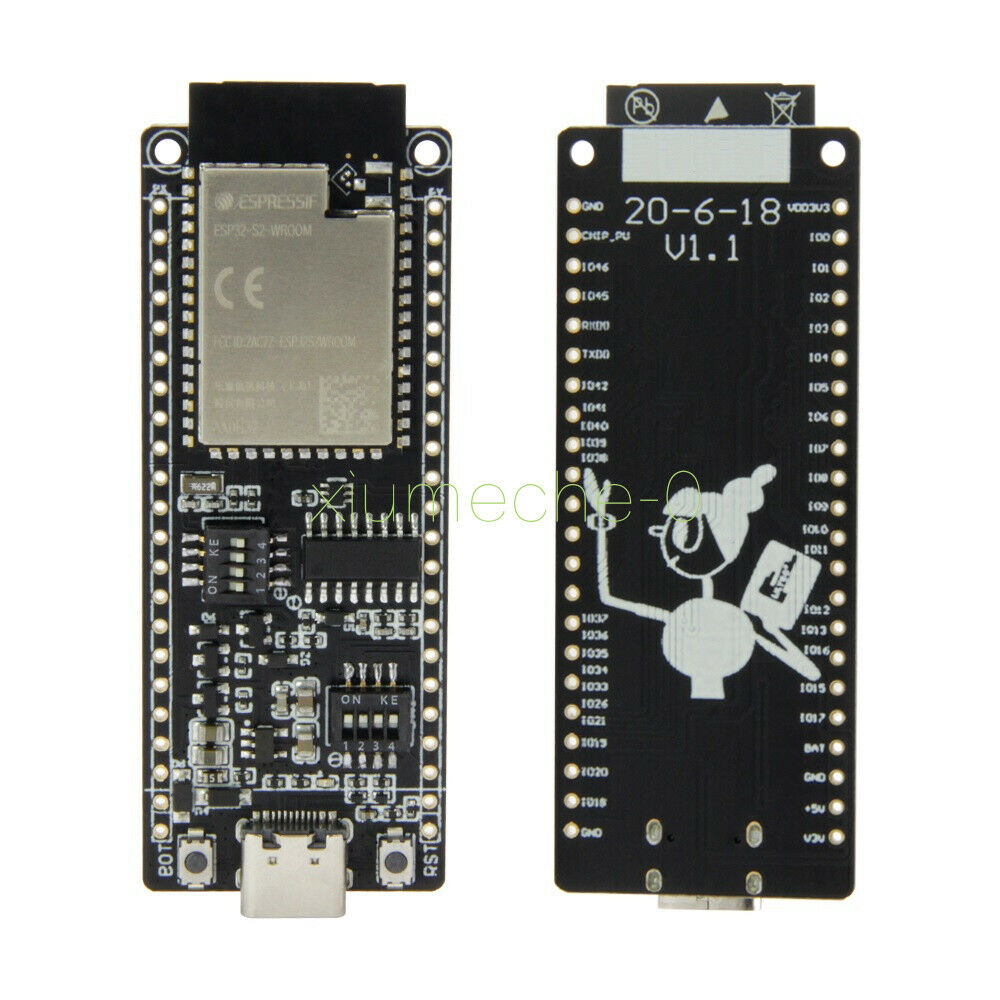

ESP32 ESP32-S2 ESP32-S2-WOOR V1.1 WIFI Wireless Module Type-C Development Board robotic.icu

robotic.icu: ESP32 ESP32-S2 ESP32-S2-WOOR V1.1 WIFI Wireless Module Type-C Development Board
Posted in: Specs | by Brian Taylor | 2021 Oct 02


esp32-S2 -- More Picts - Open image

Product Description
Hardware Specifications

Origin:	China
Delivery:	01-16, 08-16
datepaid:	2021-10-02
Received:	2021-10-16
Quantity:	1pcs
Price:	7.97
Shipping:	3.00
Total:	10.97

Chipset ESPRESSIF-ESP32-S2-WROOM
FLASH 4MB
PSRAM 8MB
SRAM 520 kB SRAM
Button BOOT,REST,SMD DIP Switch
USB to TTL CH340C
Modular interface SD card、UART、SPI、I2C、PWM、I2S、ADC
On-board clock 32.768KHz crystal oscillator
Working voltage 2.7V-3.6V
Working temperature range -40℃ ~ +85℃
Weight 8g
Size 65.48x26.02x4.5mm

Power Supply Specifications
Power Supply Input: USB 5V/1A
Charging current: 500mA
Battery Input: 3.7-4.2V
USB: Type-C USB
Wi-Fi
Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol: 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power: 22dBm
Communication distance: 300m

More Information
https://github.com/Xinyuan-LilyGO/LilyGoesp32s2-base https://www.youtube.com/watch?v=AuO-pQbbZCE Other Images eBay Item: 154097074551
